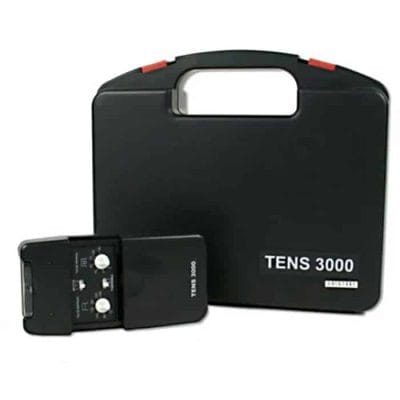

Richmar TENS 3000 Analog TENS Unit

(1 customer review)

$49.95

The Richmar TENS 3000 Analog TENS Unit is a battery operated pulse generator that sends electrical impulses electrodes to the body and reach the nerves causing pain.  The device is provided with two controllable output channels, each independent of each other.

The electronics of the TENS 3000 create electrical impulses whose Intensity, duration, number per second and modulation may be altered with the controls or switches.  Dial controls are very easy to use and the slide cover prevents accidental changes in the setting.

Richmar logo – manufacturer of ultrasound, electrotherapy, and combo therapy devices
Description

The Richmar TENS 3000 Analog TENS Unit uses a microprocessor which gives exact dial performance and are as accurate as a digital unit, yet easy to operate. Benefits include maximum full strength power of 80 mA. The safety amplitude cap protects the amplitude knobs from accidental bumps or knob movements.



Product Features

  • Power Source:  9-volt battery
  • Modes:  Standard, Modulate and Burst
  • Channels:  Dual
  • Timer:  15 and 30 minutes or continuous
  • Pulse Width:  Adjustable from 30-260μs
  • Pulse Rate:  Adjustable from 2 to 150 Hz, 1 Hz/step
  • Pulse Amplitude:  Adjustable, 0 ~ 80mA at 500 ohm Load each channel, 1mA/Step.
  • Waveform:  Asymmetrical biphasic square pulse
  • One year warranty

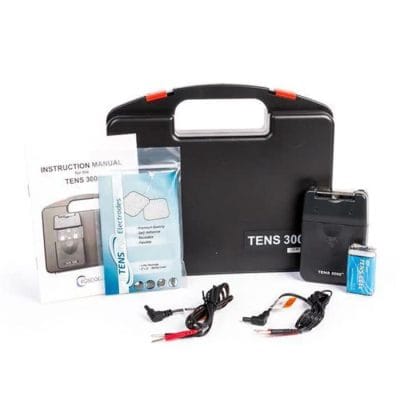

What is Included with the Richmar TENS 3000 Analog Unit

  • TENS 3000 Analog device
  • One (1) pair of lead wires
  • four self-adhesive reusable electrodes
  • 9V battery
  • Hard plastic carrying case
  • Instruction manual



Documents

Richmar TENS 3000 Analog TENS Unit Instruction Manual - English PDF TENS 3000 Instruction Manual – English

Breg Polar Care Cube Usage Tips Breg Polar Care Cube Usage Tips



Videos

Additional information
Weight392 g
Dimensions22 × 21 × 5 cm
Pulse DurationAdjustable from 30-260μs
Pulse RateAdjustable from 2 to 150 Hz, 1 Hz/step
Intensity RangeAdjustable, 0 ~ 80mA at 500 ohm Load each channel, 1mA/Step.
Electrode type2.0mm Pig Tail Style
Battery Type9V
