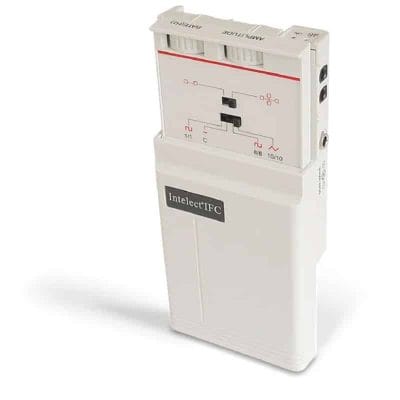

Chattanooga Intelect Portable IFC Home Unit

The Chattangooga Intelect Portable Interferential Current (IFC) Electrotherapy for symptomatic relief and management of chronic pain and acute post-surgical or post-trauma pain.

The basic principle of Interferential Current (IFC) Therapy uses the principle of interference to maximize the current permeating deep into the tissues while minimizing the unwanted stimulation of the cutaneous nerves.

This form of electrotherapy is the most common used by physiotherapists and allied health professionals in the clinic. This unit gives the same results but is designed to be used at home. Many clinicians will also put heat or ice over the pads while the treatment is on to further help reduce the pain and recover from injury. Most clinics put IFC on their patients for approximately 15 minutes at a time.

The Intelect IFC Features and Benefits

• Dual Channel, Manual Selection for two or four Electrodes.
• Adjustable Pulse Amplitude, Interference Frequency and Difference Frequency parameters.
• Four stimulation modes (frequency shifts): Continuous, 1/1, 8/8 and 10/10 Ramped.

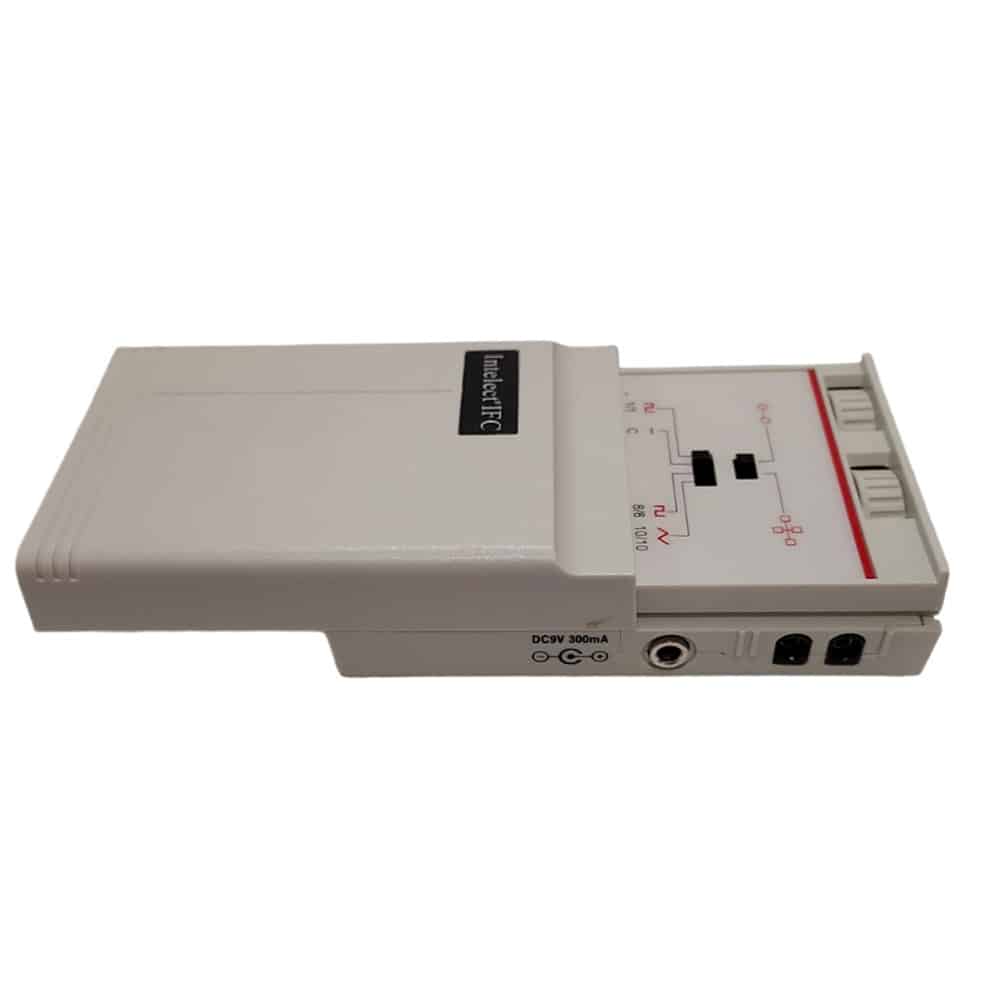

• Sliding cover for controls and battery.

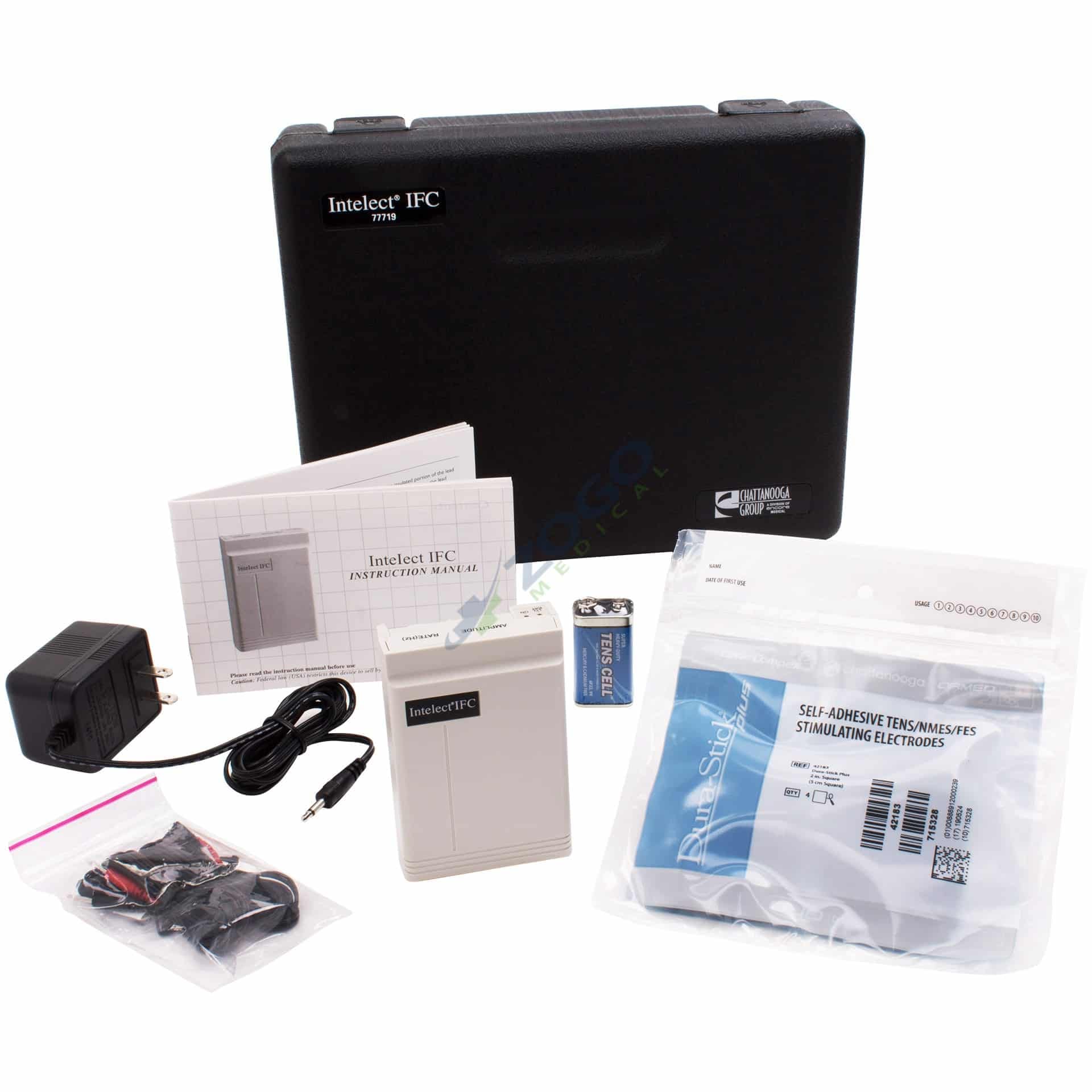

The Intelect IFC Kit Includes:

• Intelect Digital IFC Unit – 77719
• leadwires
• 9-volt battery
• Includes 120V AC line cord adapter
• 1 – 4 pack of 2″ x 2″ DURA-STICK® Self-Adhesive Electrodes
• Instruction booklet
• Convenient carrying case

Indications Include

Interferential Current (IFC)

• Symptomatic relief and management of acute and chronic pain.
• Increase blood flow to the area of injury to help in the recovery process.
• Relief of pain associated with arthritis, rotator cuff injuries, upper and lower back injuries, neck pain and injuries such as whiplash, elbow pain,  and general musculature pain.

Specifications of the Chattanooga IFC home Unit

• Channel Manual selection. Single for two-electrode selected. Dual for four-electrode selected.
• Pulse Amplitude 0~32 mA = 0~16 volts, adjustable (at 500 ohm load)
• Carrier Frequency (Hz) 4000
• Interference Frequency (Hz) 4001~4150
• Difference Frequency (Hz) 1~150
• Pulse Width 125 microsecond/phase
• Waveform Symmetric biphasic square pulse
• Frequency Shifts 1/1 abrupt, Continuous, 8/8 abrupt, 10/10 ramped
• Power Supply 9V DC square shape battery
• Size (D x W x H) 1.3″ x 2.5″ x 3.7″ (33 mm x 64 mm x 94 mm)
• Weight (including battery) 4.7 oz (134 g)
• Low Battery Indication Yes
• Safety Standard EN 60601-1 EN 60601-1-2 IEC 60601-2-10
• Operation Ambient Temp Range 50 ~ 95ºF (10 ~ 35ºC) Operation Ambient humidity Range 20 ~ 90% RH
• Storage & Transportation Temp Range 32 ~ 158ºF (0 ~ 70ºC) Storage & Transportation Humidity

Documents

Chattanooga Intelect IFC Portable Device Instruction Manual
