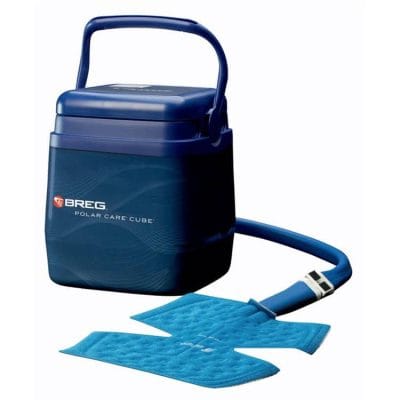

Breg Polar Care Cube Knee Cold Therapy System

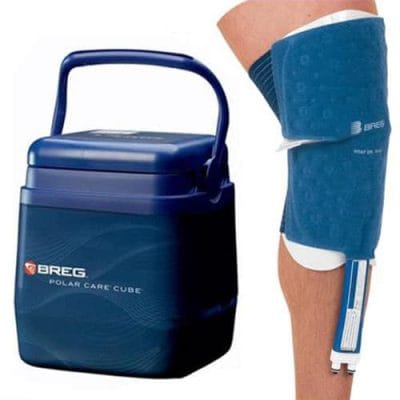

The Breg Polar Care Cube Cold Therapy System with the WrapOn Knee Pad is a medical device designed to provide cold therapy to reduce pain, swelling, and inflammation after surgery or injury.  It is commonly used in orthopedic and sports medicine settings.  You can also purchase the optional Breg sterile dressing that is placed between your skin and the pad.

Depending your patient-specific protocol, with nothing more than an initial fill of a little ice and water, you can enjoy up to 6-8 hours of motorized cold therapy.

Note:  This item is non-returnable due to hygienic purposes.

Features and Benefits of the Polar Care Cube Cold Therapy System with WrapOn Knee Pad

• Proven reliability and effectiveness.
• Strong pump for optimal durability.
• High flow rate results in even pad temperature.
• Provides continuous motorized cold treatment for up to 6 – 8 hours.
• Simple and easy to use.  Just fill with ice and water!
• Ideal for use after surgery such as having a knee replacement or ACL repair.

Sizing Information for the knee pads of the Breg Polar Care Cube Cold Therapy System

Knee Pad – Regular:  10.25″ x 11.25″ – Generally fits a person of height 5’7″ or less.

Knee Pad – Large:  11.5″ x 12″ – Generally fits a person between the height of 5’8″ and 6’3″.

Knee Pad – X-Large :  12.25″ x 19″ – Generally fits a person greater than 6’3″.

Documents for the Breg Polar Care Cube Cold Therapy System

Instructions for Use of the Breg Polar Care Cube

Breg Polar Care Cube Usage Tips

How to use Polar Care Cube Knee Cold Therapy System

Setting Up Polar Care Cube

1. To refill:
   • Unlock handle and remove lid
   • Fill with cold water to line, then ice to line
   • Replace lid and lock with handle in upright position

Coupler Connections

2. To Connect Unit to Pad:
   • Push down on the two metal tabs
   • Push connectors together until metal tabs pop up

Operation

3. 3. To Turn on/off:
      • Plug power supply into wall and receptacle on lid
      • Operation begins automatically with power
      • Unplug power supply to turn off

3. To Refill:
   a. Turn off
   b. Press down on two metal tabs to disconnect unit and pad
   c. Remove lid and place upside down on a flat surface
   d. Drain and follow fill instructions

Check Skin Frequently

inspect the patient skin under the pad as prescribed typically every one to two hours.  You should be able to inspect the skin by lifting the pad and insulation barrier.

End Session

To stop the pump, disconnect electrical power and remove pad.

How to Clean Polar Care Cube Cold Therapy System

• After use, empty and dry the unit with a soft cloth
• Warm water and mild detergent may be used occasionally to clean the pump and tubes

Polar Care Cube WrapOn Pads

The ergonomic design of the Breg WrapOn Pads provides exceptional coverage and patient comfort. Elastic straps offer static compression while holding the pad firmly in place.

Please note:  An insulation barrier (MUST be applied between the WrapOn Pads and the patient’s skin (Polar dressing or a terry cloth hand towel works best).

A pad is required for this system to work and must be purchased separately.

Polar Care Cube Dressing

Proper use requires an insulation barrier between the pad and your skin.  The water impermeable Sterile Polar Dressings offered by Breg provide a complete barrier between the pad and the skin.

This can be purchased separately.  You can also use a face towel between the pad and your skin for a more economical solution.

Polar Care Cube Y Adapter

The Y adapter allows for two pads, dual cooling zones, to be used at one time from one unit.

This can be purchased separately.

Warnings of the Breg Cube Cold Therapy System

• The Polar Care Cube can be cold enough to cause serious injury, including full skin necrosis.
• Follow these Operating Instructions, and carefully read the Product Insert (see the pouch on side of unit) and the Cold Therapy Pad Fitting Instructions (provided with each Cold Therapy Pad) prior to use
