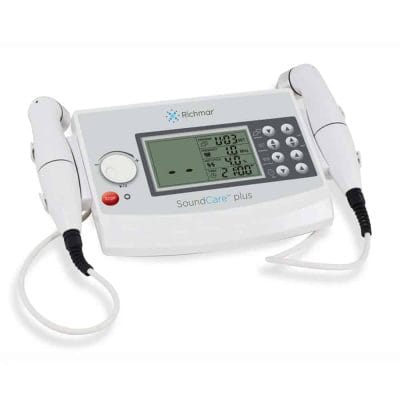

Richmar SoundCare Plus Professional Ultrasound Device

Unique in nature, the Richmar SoundCare Plus professional ultrasound device comes complete with two sound heads that can be plugged in simultaneously for more targeted therapy.  Simple to operate, the user can switch between wands with the single push of a button.

Richmar SoundCare Plus Ultrasound Features

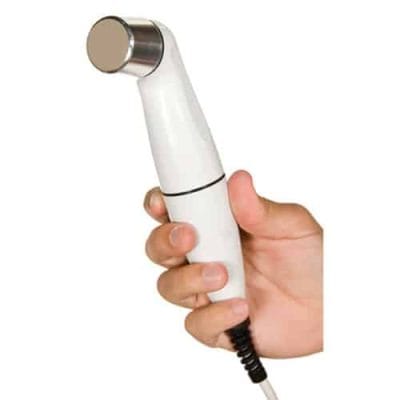

• Comes complete with two sound heads, 1 cm and 5 cm for more targeted therapy
• Used for treatment of chronic and acute muscular pain
• User can switch between dual soundheads with the push of a single button
• Fully functional 1 MHz and 3 MHz frequencies
• 10 user defined presets with pulsed and continuous therapy
• Ergonomic handle design
• Two year warranty

Richmar SoundCare Plus Technical Specifications

• Acoustic Frequency: 1 MHz ± 10%, 3 MHz ± 10%
• Output Power:
  • 0.5 – 10.0 W ± 20%, when duty factor > 80% for 5 cm2
  • 0.5 – 15.0 W ± 20%, when duty factor < 70% for 5 cm2
  • 0.1 – 2.0 W ± 20%, when duty factor > 80% for 1 cm2
  • 0.1 – 3.0 W ± 20%, when duty factor < 70% for 1 cm2
• Pulse Repetition Rate: 100 Hz ± 10%
• Duty Factor: 10% – 100%, Stepping 10%
• Timer: Max 30 minutes
• Effective Radiating Area: 5.0 cm2 ± 20%; 1.0 cm2 ± 20%
• Actual Intensity:
  • 3.0 w/cm2 ± 20% (1.0 MHz)
  • 3.0 w/cm2 ± 20% (3.0 MHz)
• Raw (Max): 5.0
• Beam Type: Collimated
• Material of Applicator: Aluminum
• Waterproof Grade: IPX7 only for treatment head

Documents

Richmar SoundCare Plus Professional Ultrasound Sell Sheet
