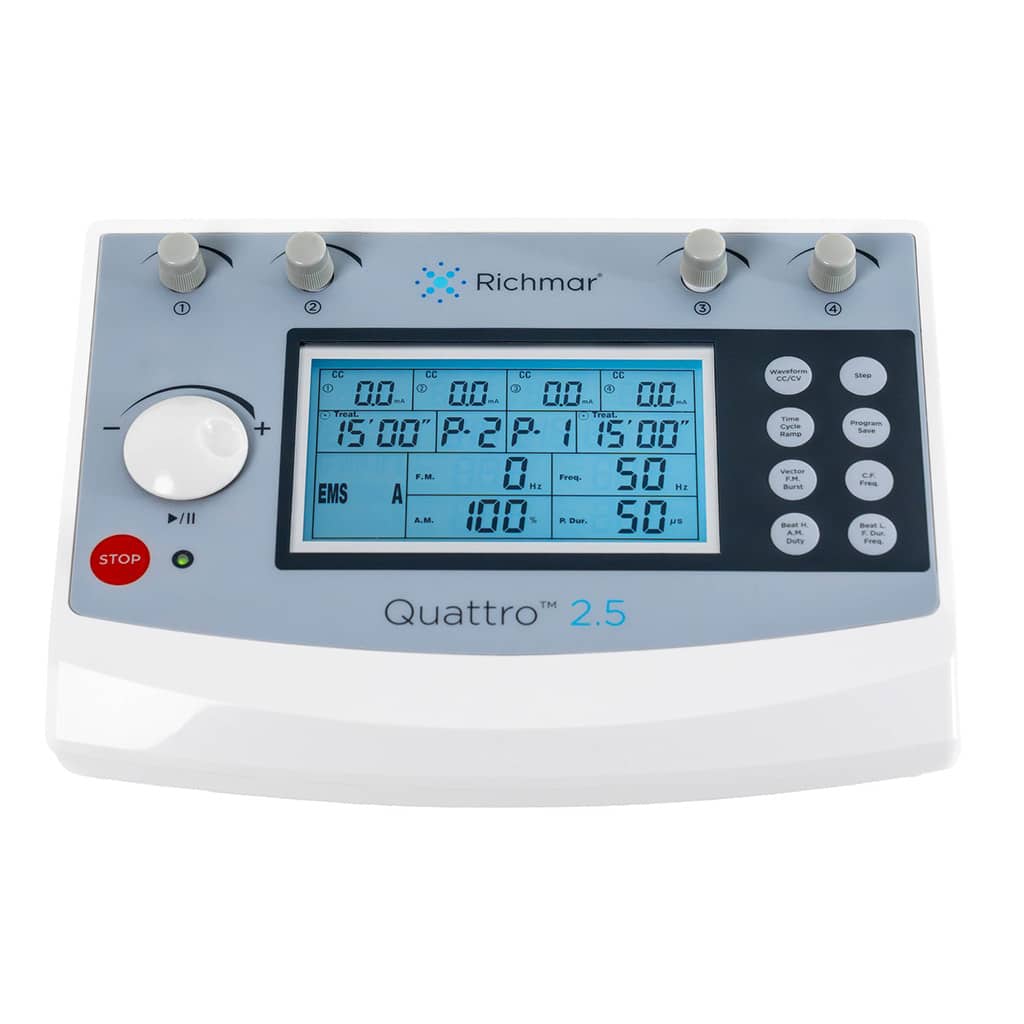

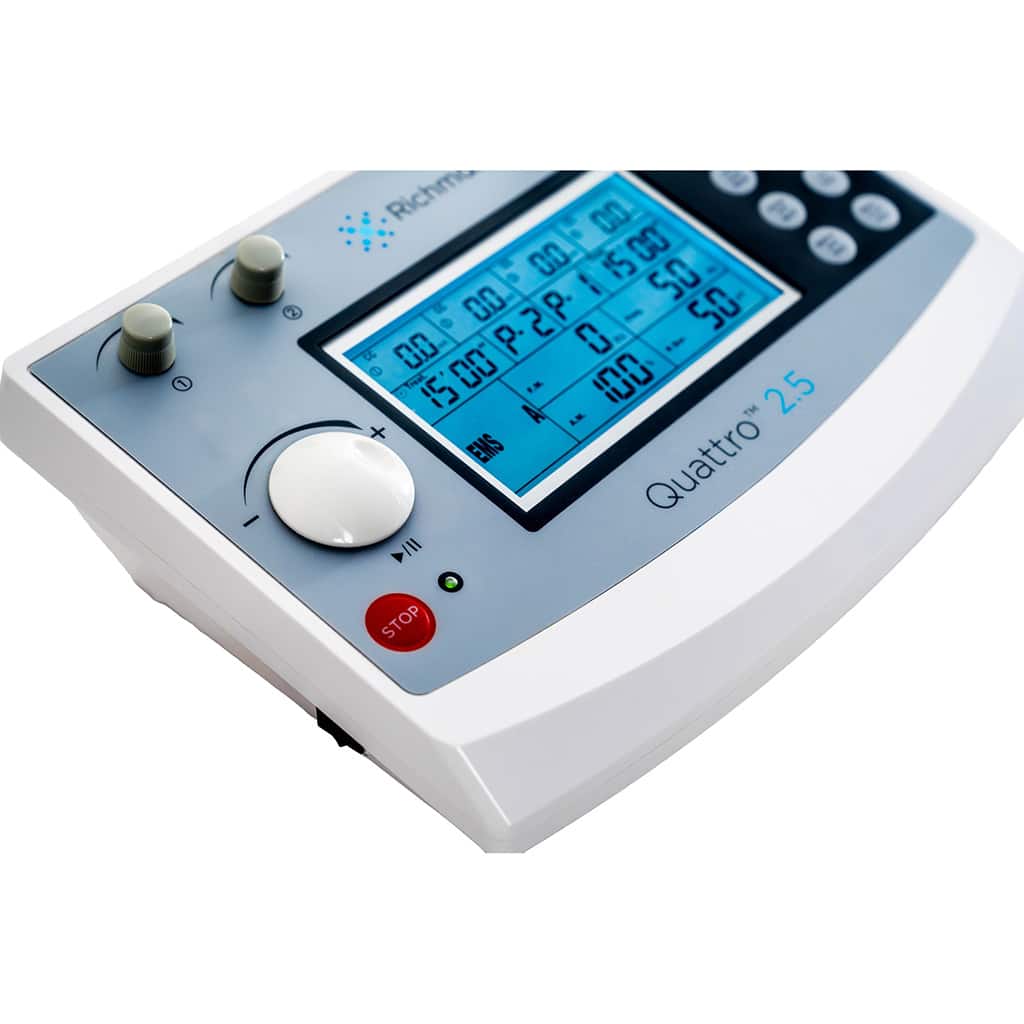

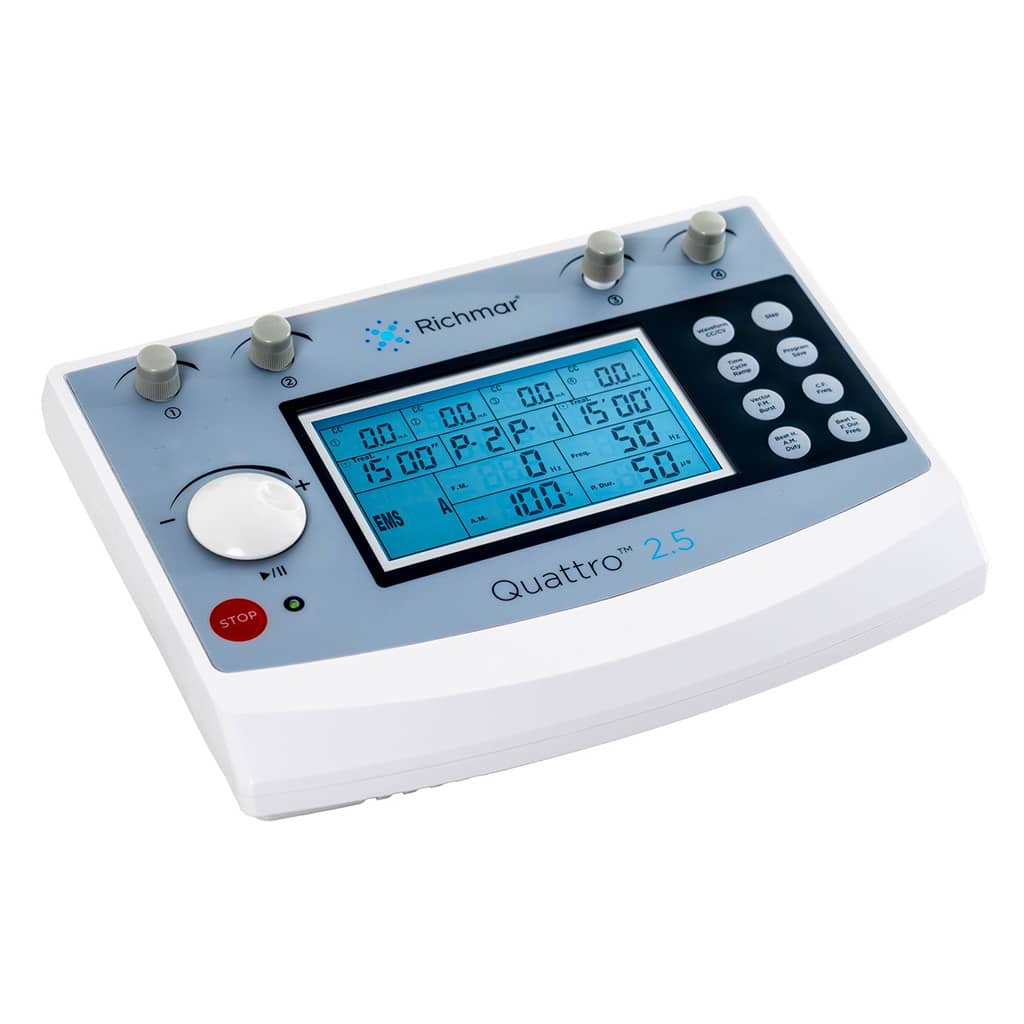

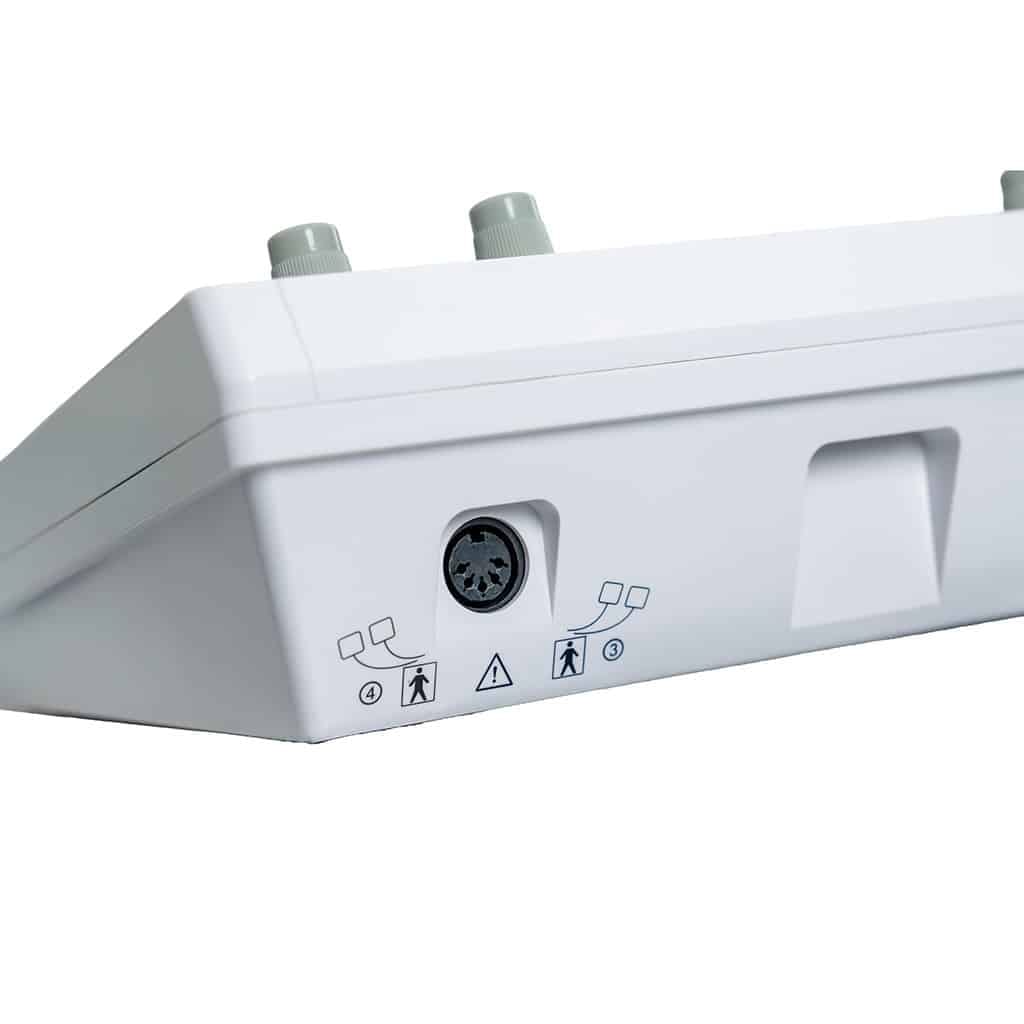

Richmar Quattro 2.5 Professional Electrotherapy Device

The microprocessor controlled Quattro™ 2.5 is a professional four-channel electrotherapy device that provides IF 4-Pole, IF 2-Pole, Russian, EMS and TENS waveforms with two separate timers. Its portable design allows it to be transported to patients or kept stationary at clinics. The Quattro 2.5 is easy to use and can be set up and running within minutes. The advanced operating system ensures a complete range of therapy no matter where it is used. It features several amplitude modulation options and the interferential and premodulated modes offer frequency modulation as well as a static frequency option.

Features of The Quattro 2.5 Professional Electrotherapy Device

• Two separate timers to treat two areas/ patients at once or one larger area.
• Preset protocols as well as customized user defined protocols
• Four channels of electrical stimulation output
• Large easy-to-read graphical LCD display with exact dial performance and two programmable timers
• Waveforms include TENS, EMS, 2-pole Interferential, 4-pole Interferential and Russian
• 10-presets per waveform totaling 50-presets in all (plus professional mode)
• Designed for tabletop, therapy cart or mobile use
• Includes eight sets of electrodes, eight sets of rubber electrodes with sponges, eight straps, four sets of lead wires and a user manual with preset protocol guide
• 2-year warranty
• Health Canada Approved

Technical Specifications

GENERAL SPECIFICATIONS

• Adapter Supply Voltage: 100-240 VAC, 50-60 Hz, 0.6A
• Adapter Output:  15V — 1.2A Max.
• Adapter Dimensions:  88mm (L) x 48mm (W) x 29mm (H)
• Dimensions:   250mm (L) x 185mm (W) x 82 mm (H)
• Operating Environment: Temperature: 10⁰C (50⁰F) to 40⁰C (104⁰F) Relative Humidity: 30% – 85%
• Storage Environment: Temperature: -20⁰C (-4⁰F) to 55⁰C (131⁰F) Relative Humidity: 20% – 90%
• Maximum Treatment Time:  60 minutes
• Product Dimensions:  10 ½” (W) x 15” (L) x 8” (H)
• Product Weight:  6.7 lbs

4-POLE INTERFERENTIAL MODE

• Waveform Type: Bi-phasic square
• Mode Selection:  CC (Constant Current) or CV (Constant Voltage)
• Vector:  Auto: 0%-100%, Manual: 0⁰-90⁰
• Carrier Frequency (C.F.):  4.0kHz
• Sweep Low Beat Frequency: (Beat L.) – 150 Hz
• (Beat H.) Sweep High Bet Frequency:  1-(Beat H.) Hz
• (Beat L.) Output Intensity: 0-50mA (CC, at 1k ohm load) 0-50V (CV, at 1k ohm load)
• Treatment Time: 1-60 minutes

2-POLE INTERFERENTIAL MODE

• Waveform Type: Bi-phasic square
• Mode Selection: CC (Constant Current) or CV (Constant Voltage)
• Carrier Frequency (C.F.): 4.0kHz
• Sweep Low Beat Frequency: (Beat L.) – 150 Hz
• (Beat H.) Sweep High Bet Frequency: 1-(Beat H.) Hz
• (Beat L.) Output Intensity: 0-50mA (CC, at 1k ohm load) 0-50V (CV, at 1k ohm load)
• Treatment Time: 1-60 minutes

TENS MODE

Waveform Type: Mono-phasic square

Mode Selection: CC (Constant Current) or CV (Constant Voltage)

Frequency:  1-250 Hz

Frequency modulation (F.M.):  0-249 Hz

Burst Rate (Burst):  0-10Hz (7 pulse)

Phase Duration (P.Dur):  30-400μs

Amplitude Modulation (A.M.):  0%-100%

Output Intensity: 0-100mA (CC, at 1k ohm load) 0-100V (CV, at 1k ohm load)

Cycle Time (Cycle):  Continuous , 4/4, 4/8, 7/7, 5/5, 4/12,10/10, 10/20, 10/30, 10/50

Treatment Time:  1 – 60 minutes

EMS MODE

Waveform Type:  Bi-phasic square

Mode Selection:  CC (Constant Current) or CV (Constant Voltage)

Frequency:  1-250 Hz

Frequency Modulation (F.M.):  0-249 Hz

Step Duration (P.Dur):  30-400μs

Amplitude Modulation (A.M.): 0%-100%

Output Intensity:  0-100mA (CC, at 1k ohm load) 0-100V (CV, at 1k ohm load)

Treatment Time:  1-60 minutes

Ramp Time:  1s, 2s, and 5s

Cycle Time (Cycle):  Continuous , 4/4, 4/8, 7/7, 5/5, 4/12, 10/10, 10/20, 10/30, 10/50

RUSSIAN MODE

Waveform Type:  Bi-phasic square

Mode Selection: CC (Constant Current) or CV (Constant Voltage)

Carrier Frequency (C.F.):  2.5kHz

Burst Frequency (Freq.) 0-100 Hz

Output Intensity: 2 0-50mA (CC, at 1k ohm load) 0-50V (CV, at 1k ohm load)

Duty Cycle:  10%, 20%, 30%, 40%, and 50%

Cycle Time (Cycle): Continuous , 5/5, 4/12, 10/10, 10/20, 10/30, 10/50

Treatment Time:  1-60 minutes

Ramp Time (Ramp):  1s, 2s, and 5s

Documents

Richmar Quattro 2.5 Professional Electrotherapy Device Canada Sell Sheet

Richmar Quattro 2.5 Professional Electrotherapy Device Canada User Manual

Caution: This is a Class II Medical device approved by Health Canada and Federal law restricts this device to sale by or on the order of a licensed health care professional.
